3. NPU Usage¶

QCS8550 has Hexagon Digital Signal Processor (DSP), which contains Neural Processing Unit (NPU) for AI computing.

So in general, NPU and DSP both represent the same Hexagon chip.

3.1. Aidlux Introduction¶

Aidlux is a complete edge AI development tool suite, it can simplify the AI environment deployment in qualcomm platform, to help developers accelerate the deployment of AI applications.

We use docker to deploy Aidlux Web Desktop for AI develop.

AIBOX usually installed Aidlux Web Desktop by default, you can check with command:

docker ps -a

CONTAINER ID   IMAGE                    COMMAND                  CREATED         STATUS         PORTS     NAMES
xxxxxxxxxxxx   aidlux_lu_ubun2204:xxx   "/lib/systemd/systemd"   5 minutes ago   Up 5 minutes             aidlux

If there is a container names “aidlux”, means the Aidlux Web Desktop is ready.

Otherwise you need to install it.

3.2. Install Aidlux Web Desktop¶

Download archive form here, transfer it to the device, extract and run “setup.sh”:

# Extract
tar -zxf aidlux_docker.tgz

# Install
cd aidlux_docker
chmod + setup.sh
./setup.sh

It will take about 5 minutes, the container will start automatically after installation. And it will start at boot in the future.

3.3. Aidlux Web Desktop Usage¶

Device needs access to Internet throuth eth0. Run ifconfig eth0 to get ip address.

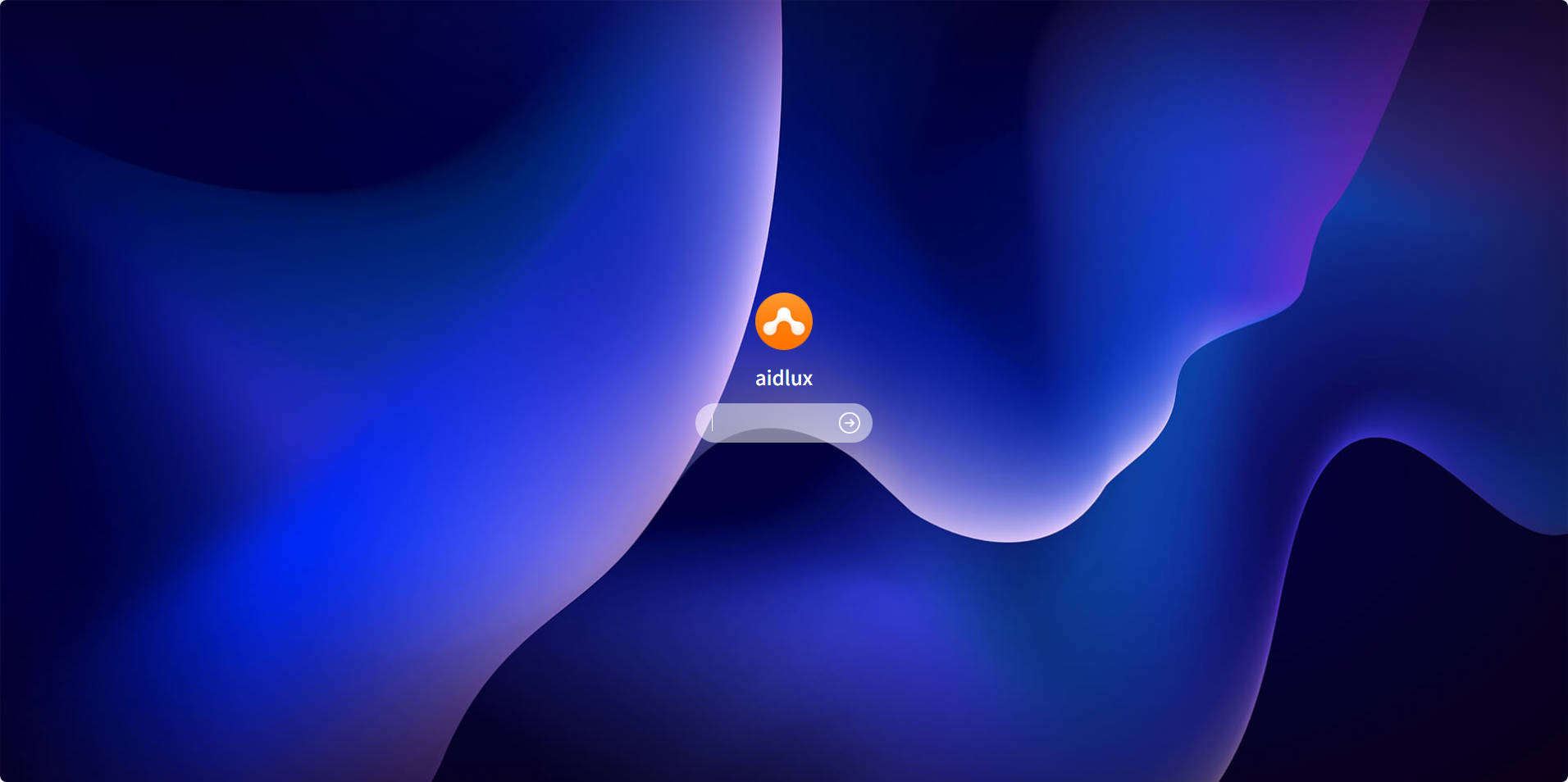

Open a browser on any computer within the local network, visit deviceIp:8000. For example 172.16.10.100:8000, you will see the Web Desktop.

_images/aidlux_login.jpg

The login password is aidlux.

The operation method of Aidlux Web Desktop is not much different from that of Linux desktop, you can use terminal and apps store, etc.

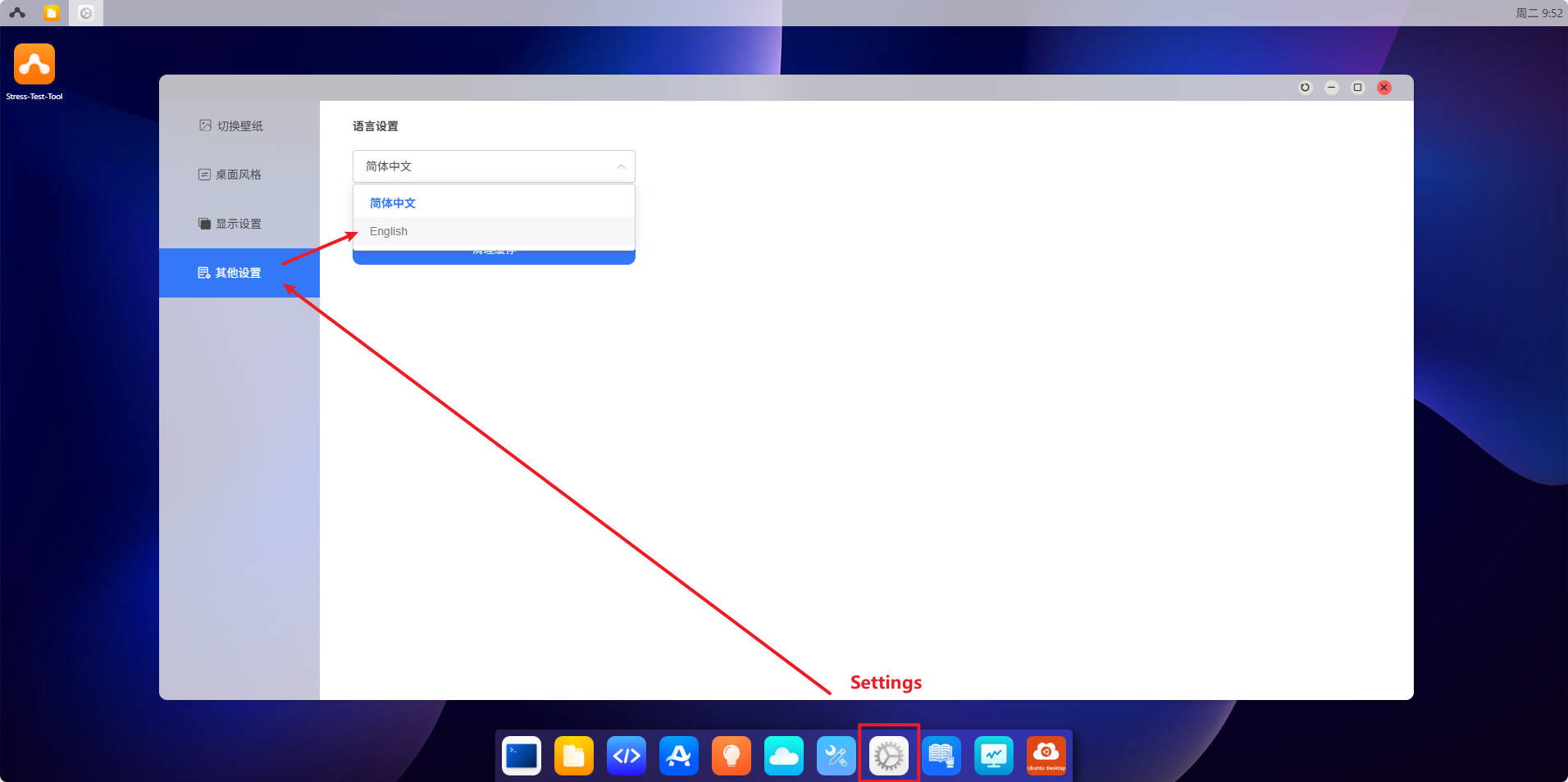

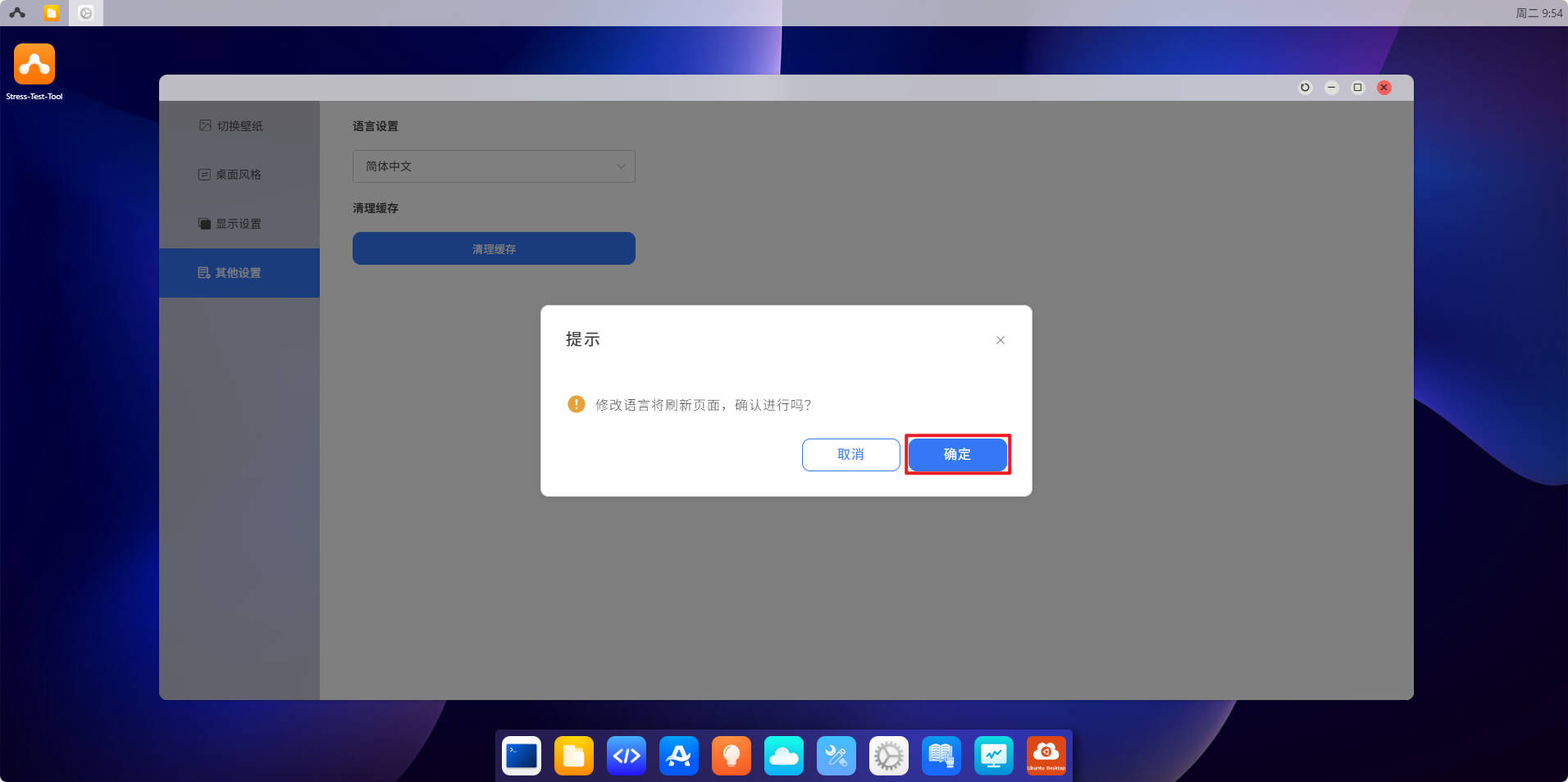

The default language may be Chinese, you can change to English in settings:

_images/aidlux_english.jpg

_images/aidlux_english_confirm.jpg

The following operations are performed in the Web Desktop:

3.4. AI Develop¶

3.4.1. Aidlite¶

Aidlite is a AI execution framework, designed to fully utilize the computing units (CPU, GPU, NPU) of edge devices to achieve accelerated AI model inference.

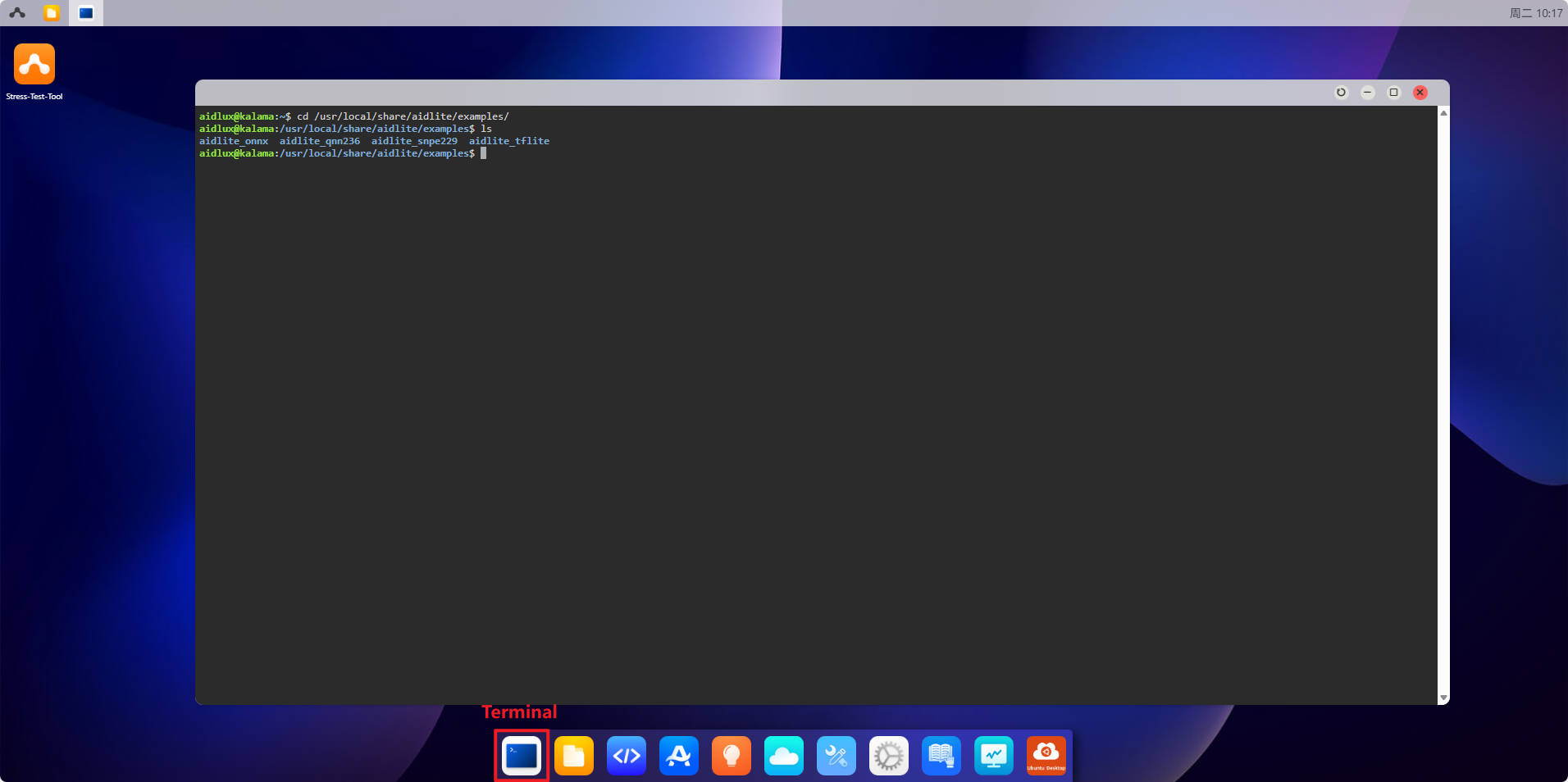

Open terminal, navigate to /usr/local/share/aidlite/examples, you can see some examples:

_images/aidlite_demos.jpg

For example, we can try to run the python demo of aidlite_qnn236:

cd aidlite_qnn236/python/

# Run, the parameter "3" means using NPU(DSP) to accelerate. The sudo password is aidlux
sudo python qnn_yolov5_multi.py 3

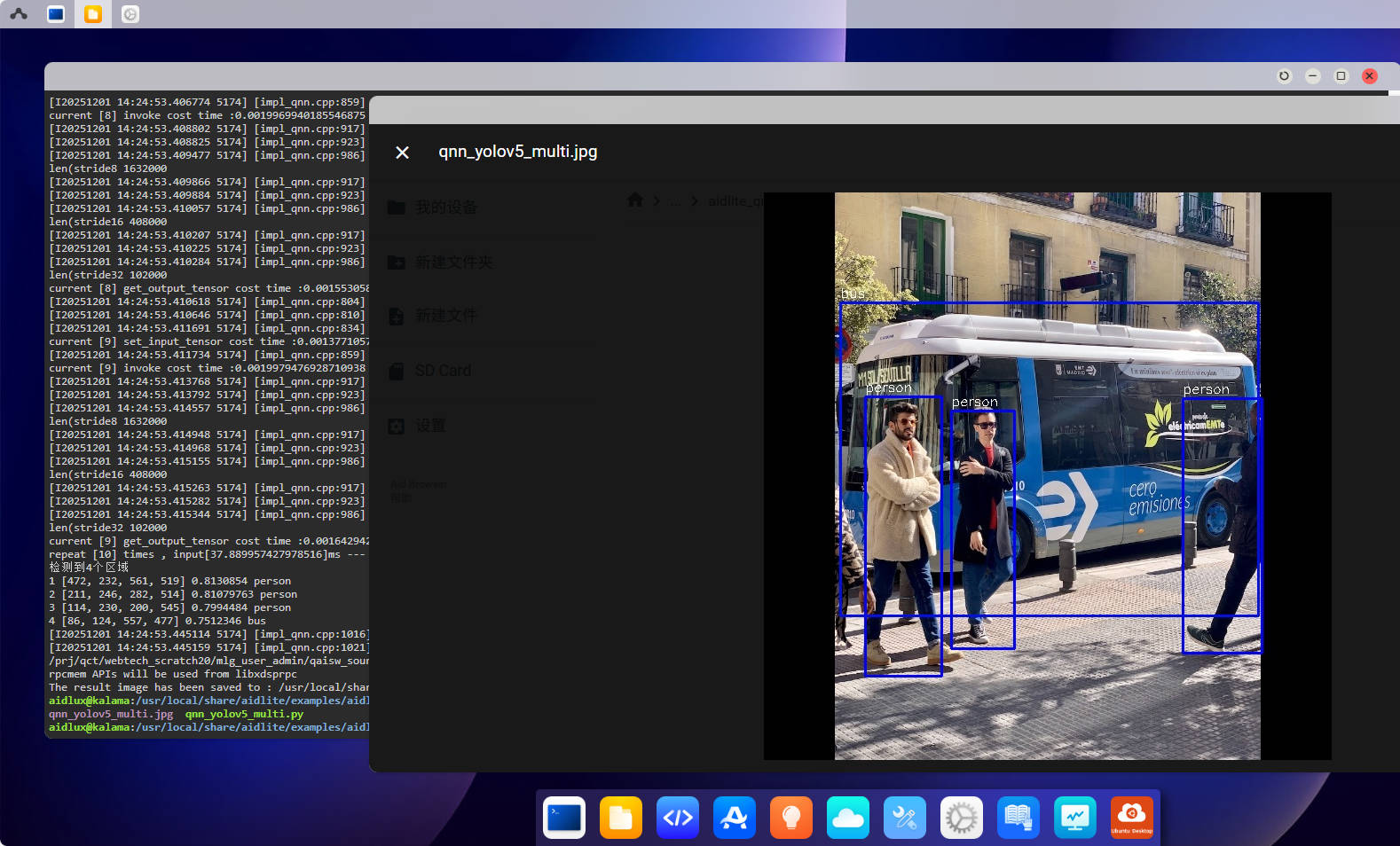

It will create an image qnn_yolov5_multi.jpg under current directory.

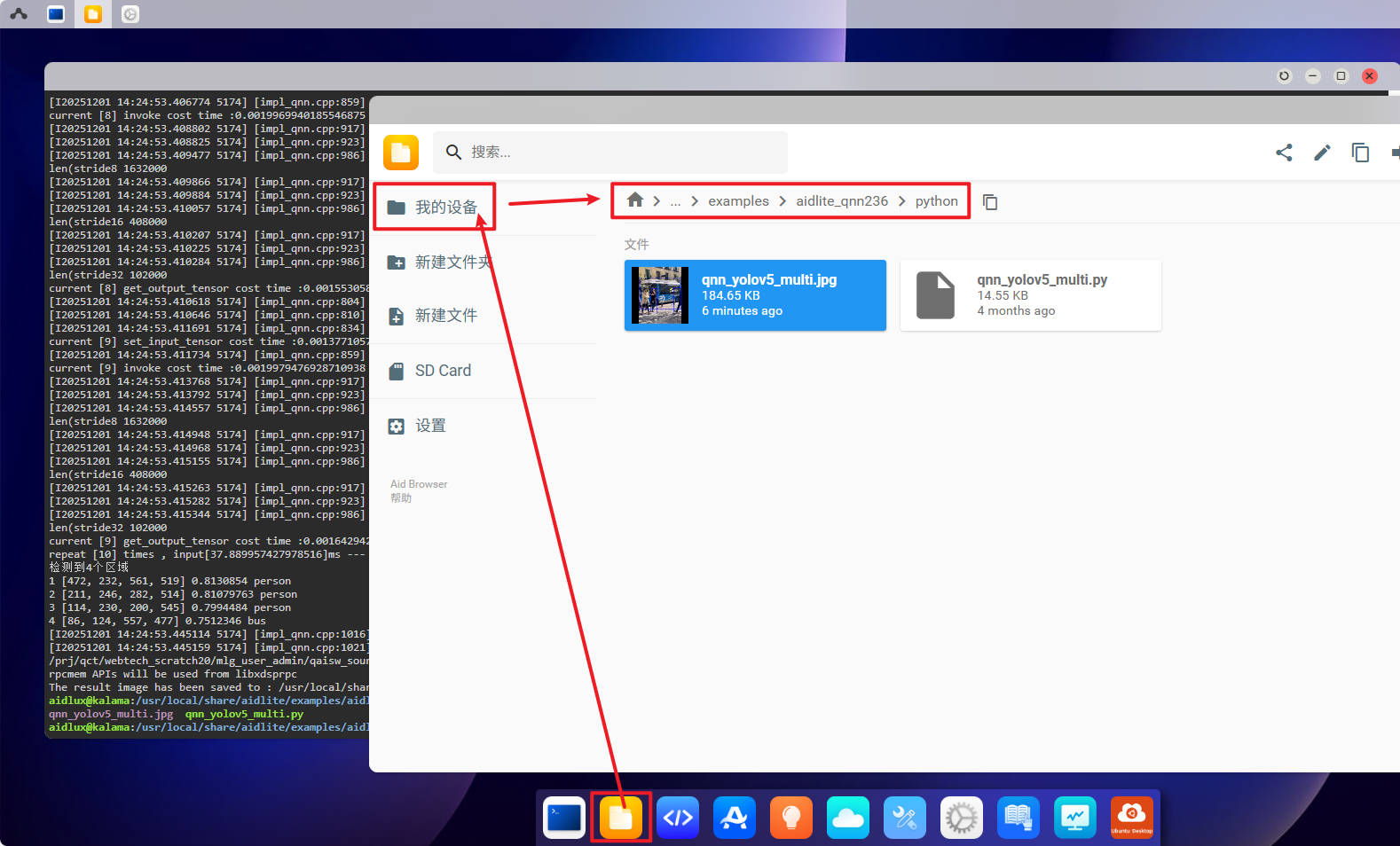

You can check the result image with File Browser.

_images/aidlite_demo_result_location.jpg

_images/aidlite_demo_result_img.jpg

3.4.2. AidGenSE¶

AidGenSE is a generative AI HTTP service adapts to the OpenAI HTTP protocol. Developers can call generative AI through HTTP and quickly integrate it into their applications.

First to check if a large model already exists:

# list downloaded model
aidllm list api

qwen2.5-3B-Instruct-8550

If it returns nothing or “command not found”, then need to install:

Installation

Install AidGenSE

sudo aid-pkg update
sudo aid-pkg -i aidgense

Install UI

sudo aidllm install ui

List available models:

aidllm remote-list api

Download model with Url, for example, aplux/qwen2.5-3B-Instruct-8550:

aidllm pull api aplux/qwen2.5-3B-Instruct-8550

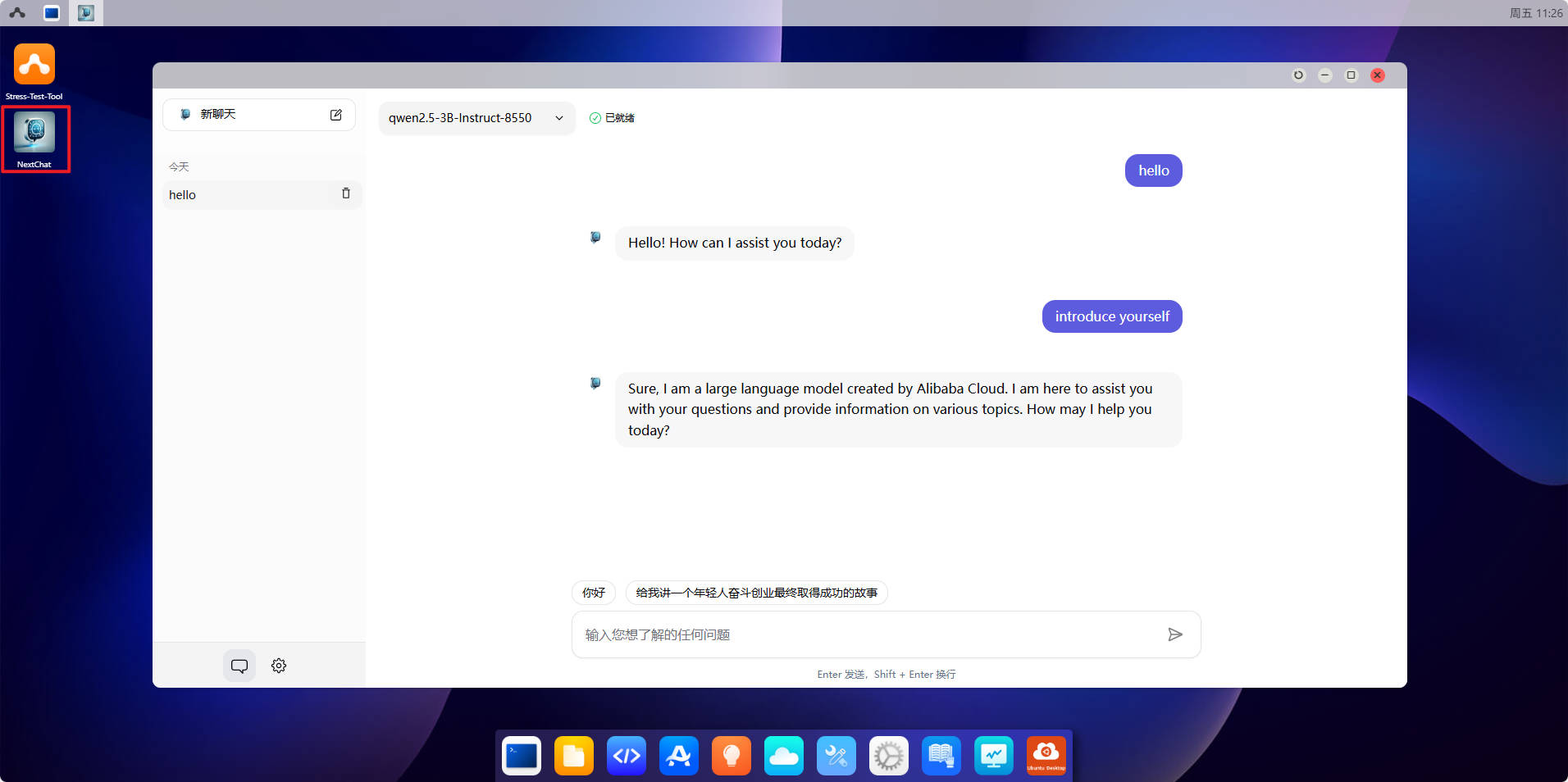

Chat Demo

Start service after model download.

# start the api service
# aidllm start api -m <model_name>
aidllm start api -m qwen2.5-3B-Instruct-8550

# other commands
# check the api status
aidllm status api

# stop api service
aidllm stop api

# restart api service
aidllm restart api
