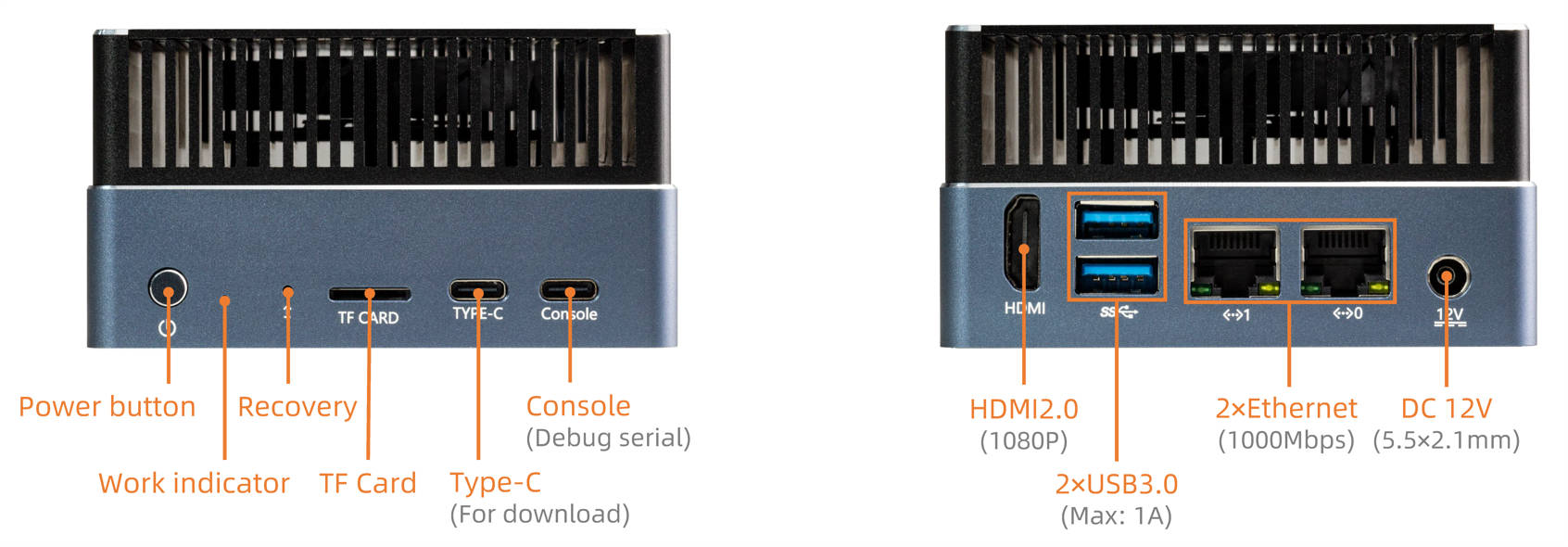

Interface Definition¶
AIBOX-8550 provides these interfaces:
DC Power Port
2 x USB3.0
1 x Type-C (For firmware download)
1 x Console (For Debug)
2 x 1000M Ethernet RJ45
TF Card slot
Power Key
AIBOX-8550 Features the Qualcomm QCS8550 octa-core AI processor with an integrated 48 TOPS NPU, supporting mainstream AI models and deep learning frameworks. The built-in Adreno 740 GPU enables ray tracing and 8K video codec. Housed in an industrial-grade all-metal casing for efficient heat dissipation, it ensures 24/7 stable operation to meet rigorous industrial demands.
