11. POE¶

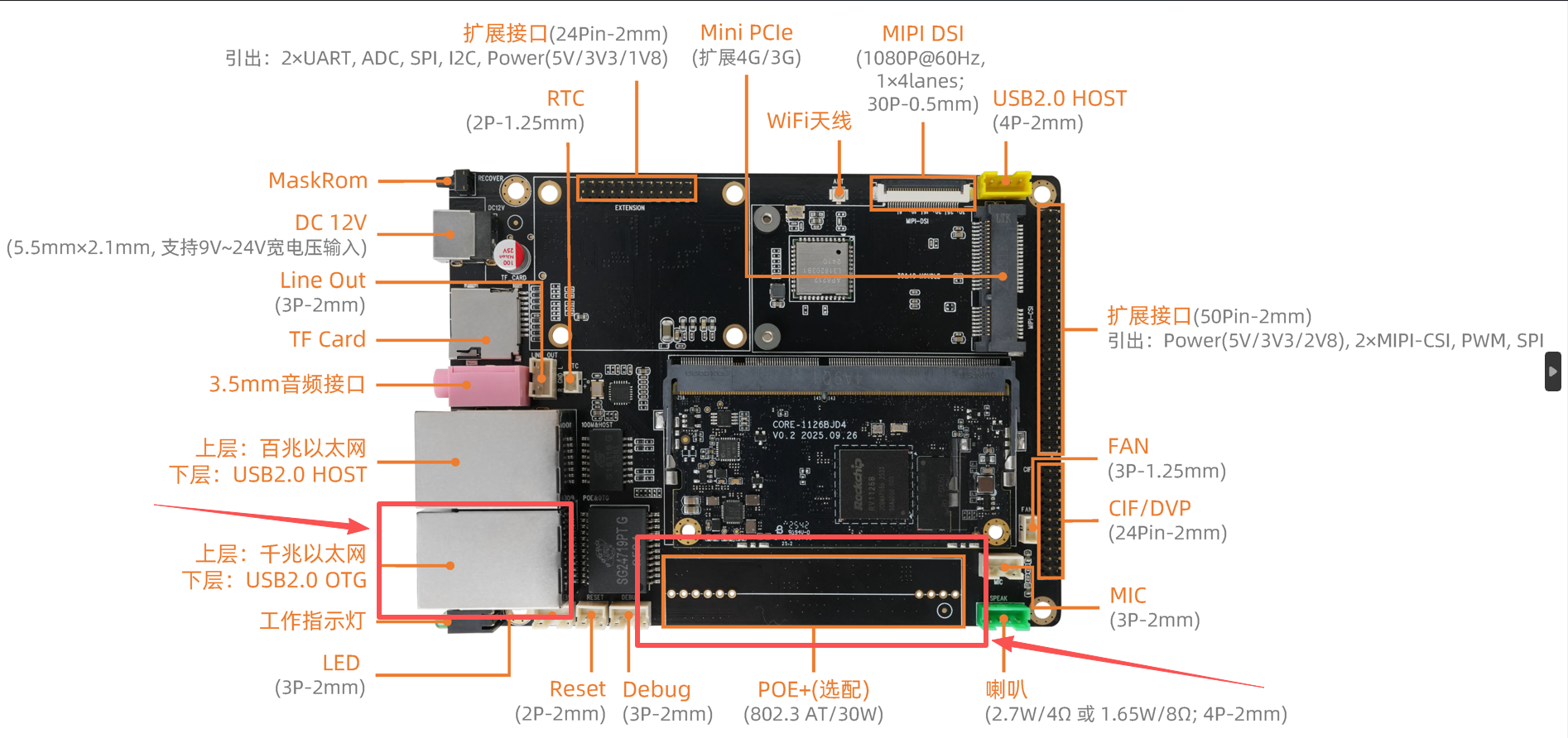

The network port where
POEfunction can be added is1000M, as shown in the figure below:
The POEmodule needs to be connected to thePOEinterface of the bottom plate
#Check whether 1000M POE port exists
ifconfig eth1
