1. Introduction

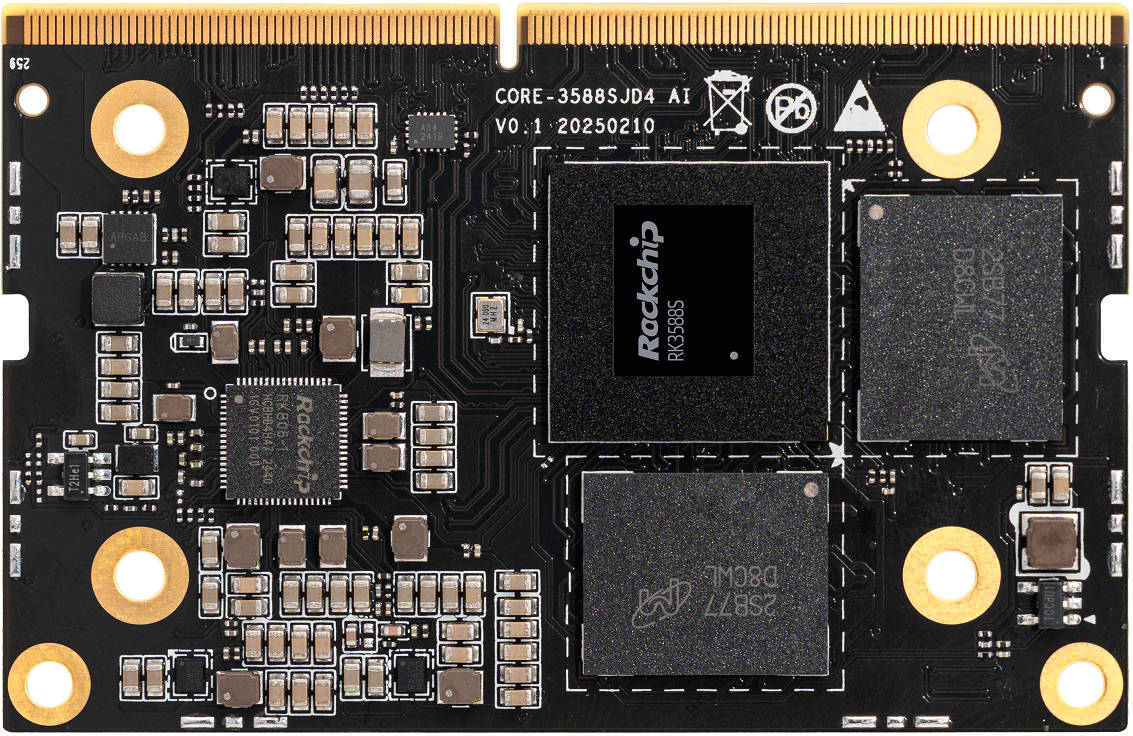

Core-3588SJD4-AI uses Rockchip’s flagship AIoT chip RK3588S, built on an advanced 8nm LP process. It features an octa-core 64-bit CPU with a clock speed of up to 2.4GHz, an intergrated ARM Mali-G610 MP4 quad-core GPU, and a built-in AI-accelerator NPU delivering 6 TOPS of computing power. RK3588S optimizes performance for diverse AI applications.

_images/core_front.jpg

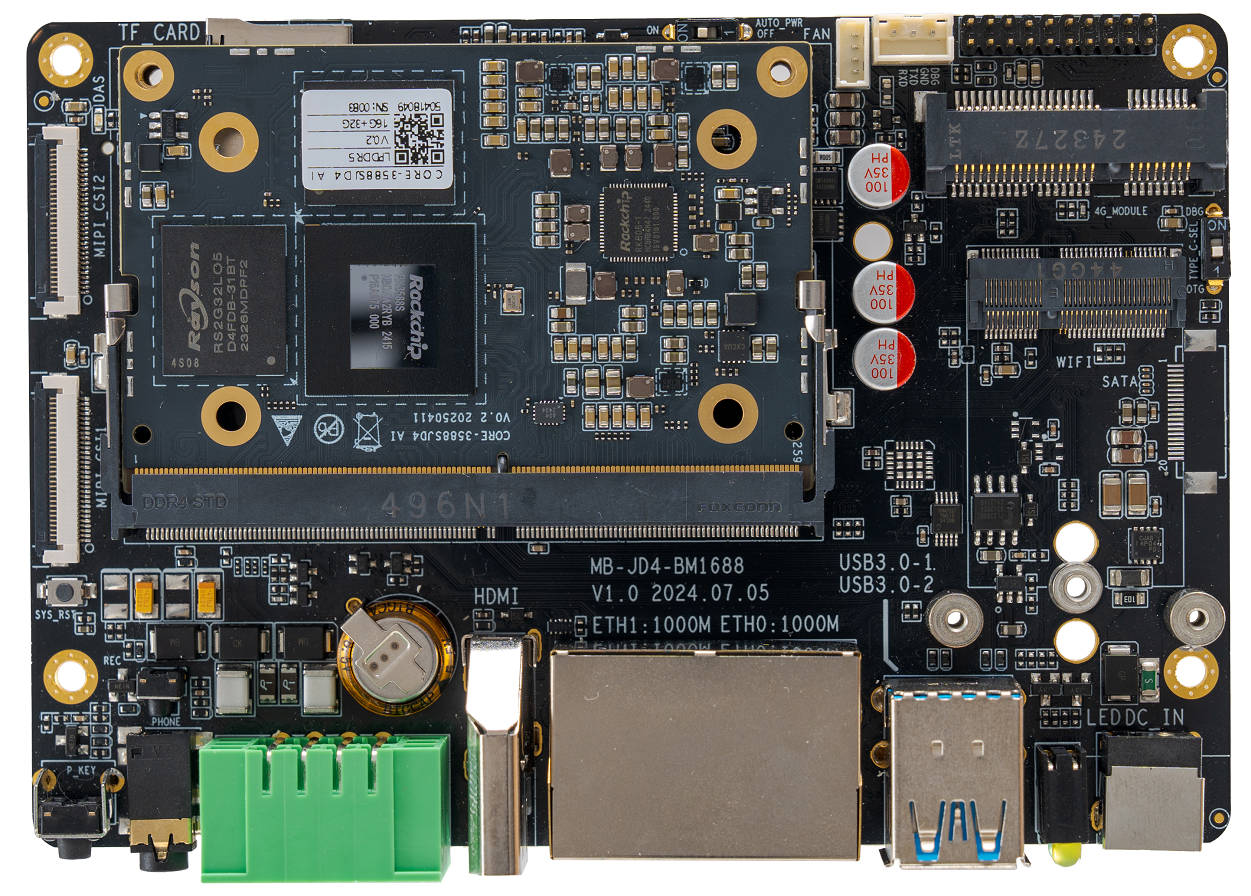

AIO-3588SJD4-AI is made up with Core-3588SJD4-AI and Motherboard MB-JD4-BM1688. AIO-3588SJD4-AI is a complete high-performance industrial mainboard with rich expansion interfaces enabling direct intergration into various smart devices to accelerate product deployment. More interface details at Interface Definition。

_images/aio_front.jpg

In addition, you may need the following accessories during use:

  • Display device

    • Monitor or TV with HDMI interface and HDMI cable

  • Network

    • 100M/1000M Ethernet cable, and wired router

    • WiFi router

  • Input devices

    • USB wire/wireless mouse/keyboard

  • Firmware upgrade and debugging

    • Usb cable

    • Serial port to serial adapter
