1. Interfaces Definition

1.1. Interface definition of the whole machine

AIO-3588SJD4-AI provides many interfaces, includes:

  • 1 x HDMI2.1 (Up to 8K@60Hz)

  • 1 x USB Type-C (For download/debug)

  • 2 x USB3.0

  • 1 x MIPI-DPHY-CSI (CSI0 muxed with CSI1, can not be used at same time)

  • 2 x MIPI-D/CPHY-CSI

  • 1 x TF Card

  • 1 x Mini PCIe (4G module)

  • 1 x PCIe M.2 (5G module)

  • 1 x SIM Card Slot

  • 1 x WIFI (External module)

  • 1 x Bluetooth (External module)

  • 1 x FAN

  • 1 x Headphone （Supports microphone recording, US standard）

  • 1 x CAN (Phoenix connector)

  • 1 x RS232 (Phoenix connector)

  • 1 x RS485 (Phoenix connector)

  • 1 x Line-Out (Through pin header)

  • 1 x Line-In (Through pin header)

  • 1 x USB2.0 (Through pin header)

  • 1 x SPI (Through pin header)

  • 2 x I2C (Through pin header)

  • 1 x RJ45 (Support 1Gbps ethernet)

  • 1 x M2.SATA3.0 or M2.PCIe2.0 (It is not supported by default; a socket needs to be soldered and the software needs to be switched.)

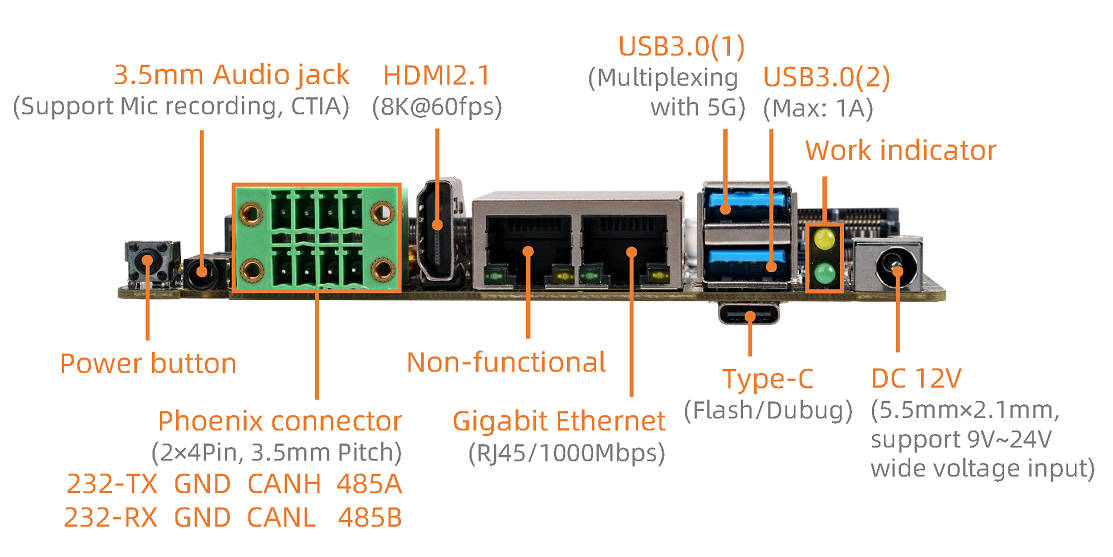

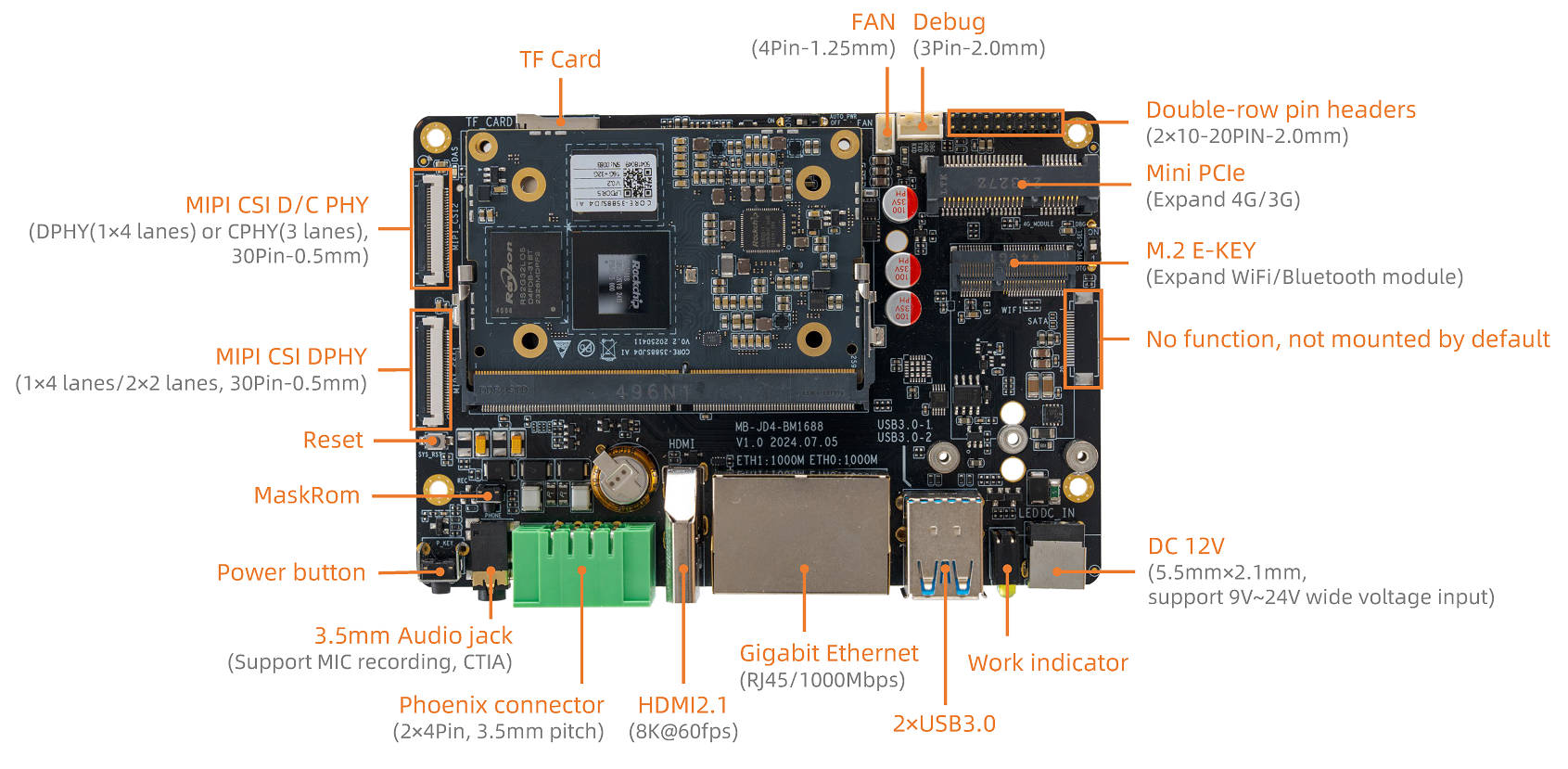

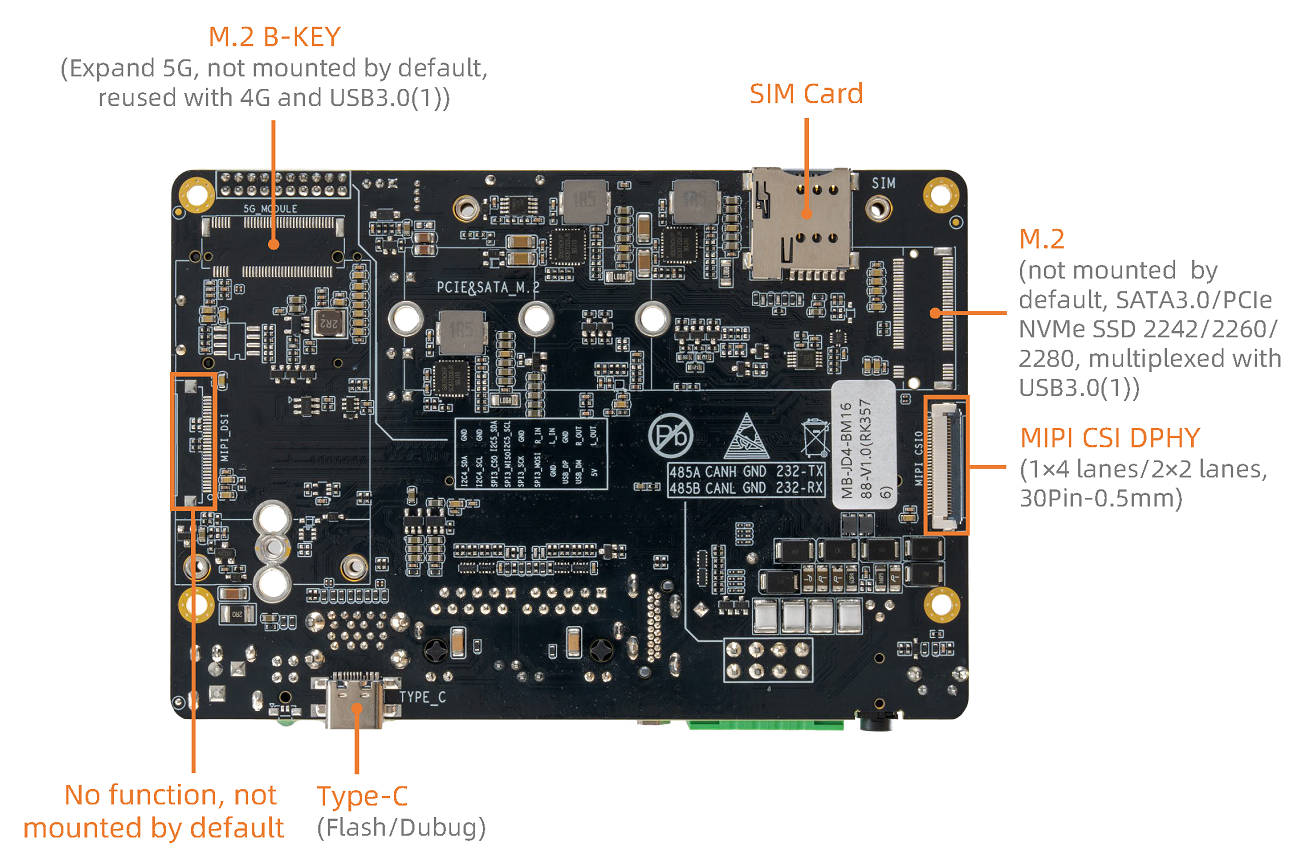

Interfaces overview:

_images/interface_front_en.jpg _images/interface_back_en.jpg _images/interface_io_en.jpg
