RK182X Developer Kit

Spec

RK182X Developer Kit Dual-Core Board Module Design, The dual-core board module features a dual-processor architecture, with one processor dedicated to video decoding and the other to AI processing. It also supports real-time AI model inference, with both core modules operating independently to optimize resource allocation. By enabling parallel multitasking, it significantly enhances overall performance and efficiency.

Login¶

Module	User	Password
Core-3588JD4/Core-3588SJD4 AI/Core-3576JD4	firefly	firefly

Main Module (Core-3588JD4/Core-3588SJD4 AI/Core-3576JD4)¶

HDMI or VGA¶

Connect the monitor.

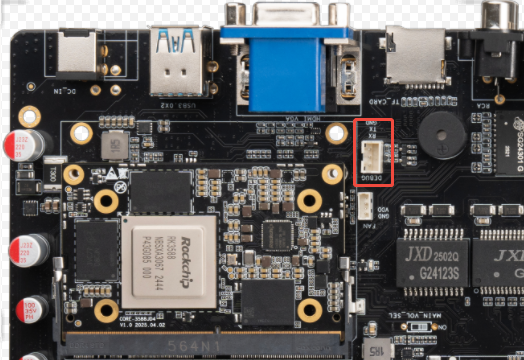

DEBUG Serial¶

_images/debug.png

Use the following serial port parameters:

Baud rate: 115200
Data bit: 8
Stop bit: 1
Parity check: None
Flow control: None
