Interface

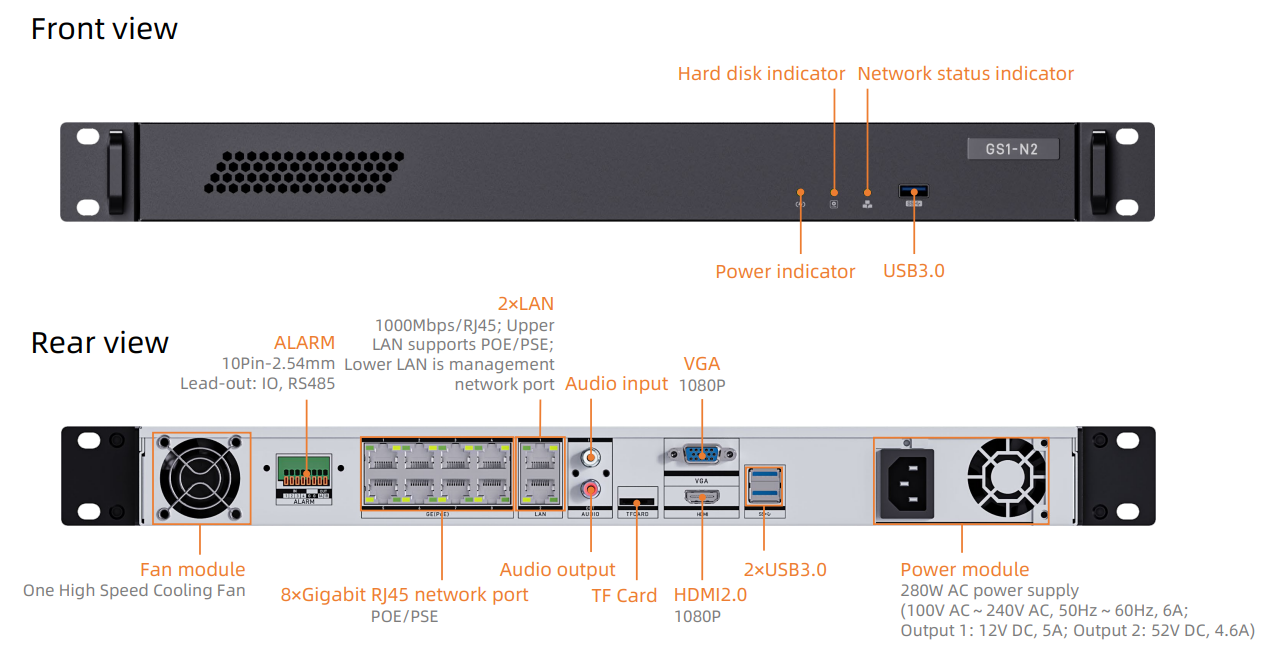

Enclosure

_images/interface-enclosure-en.png

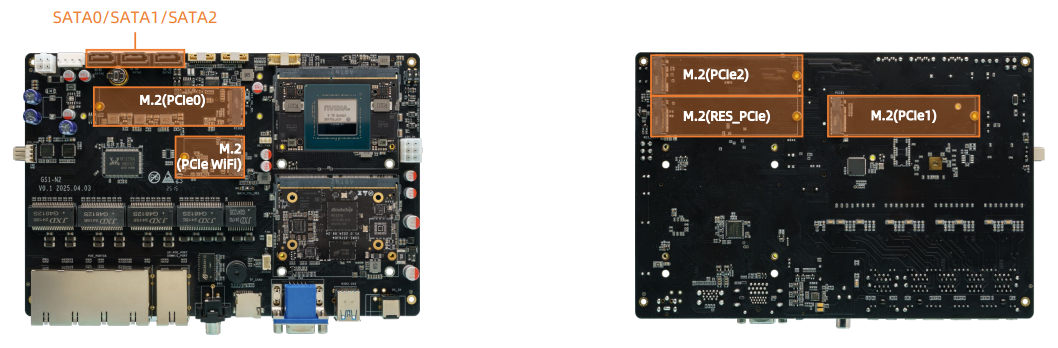

Main Board

_images/interface-mainboard-en.png

Main mod When only installing the main mod
RK3588(Core-3588JD4) 1. SATA0, PCIe0, PCIe WiFi(M.2) : Choose one of three
2. PCIe1(PCIe 3.0), Connect the sub mod: Choose one of two
3. SATA2 available (dedicated to the main mod Core-3588JD4, not available for other modules)
4. Other PCIe/SATA are not available
RK3576(Core-3576JD4) 1. SATA0, PCIe0, PCIe WiFi(M.2) : Choose one of three
2. SATA1, PCIe1: Choose one of two
3. Other PCIe/SATA are not available
SOPHGO(Core-1688JD4) 1. SATA0, PCIe0, PCIe WiFi(M.2) : Choose one of three
2. PCIe1: available
3. Other PCIe/SATA are not available
NVIDIA(Jetson Orin Nano)
NVIDIA(Jetson Orin NX)		 1. PCIe0, PCIe WiFi(M.2) : Choose one of two
2. PCIe1: available
3. TF Card, management network port: not available
4. Other PCIe/SATA are not available
Sub mod When installing the sub mod
1. You can choose anyone of the main mod
2. The sub mod can be empty		 1. RES_PCIe are available
2. PCIe2 is only available if the sub mod is:
  Core-3588JD4 / Jetson Orin Nano / Jetson Orin NX
