一、Introduction

Product introduction

EG25-G

EG25-G is the LTE Cat 4 wireless communication module designed by CTC for M2M and IoT. It adopts 3GPP Rel.11 LTE technology and supports maximum The line rate is 150 Mbps and the maximum uplink rate is 50 Mbps. At the same time, EG25-G is compatible with remote communication UMTS/HSPA+ UC200T series modules in package.Multi-mode LTE Standard EC2x series (EC25 series, EC21 series and EC20-CE) /EC200A series /EG21-G modules can be designed and used efficiently Live to switch.

_images/EG25.png

This module does not support voice calls and SMS, if you need support, please contact business sales@t-firefly.com

Detailed parameters

Model EG25-G Mini PCIe
Working frequency band LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Data transmission LTE-FDD: Max 150 Mbps(DL) Max 50Mbps(UL)
LTE-TDD: Max 130 Mbps(DL) Max30 Mbps(UL)
DC-HSDPA: Max 42 Mbps(DL) (UL)
HSUPA: Max 5.76 Mbps(UL)
WCDMA: Max 384 kbps(DL) Max 384 kbps(UL)
EDGE: Max 296 kbps(DL) Max236.8 kbps(UL)
GPRS: Max107 kbps(DL) Max 85.6 kbps(UL)
Structure size 29.0 mm × 32.0 mm × 2.4 mm
Weight about 4.9 g
Authentication Deutsche Telekom
Verizon/AT&T/Sprint/U.S. Cellular/T-Mobile
Telus/Rogers*
SRRC/CCC/NAL
GCF
CE
UKCA
PTCRB
FCC
IC
Anatel
IFETEL
KC
NCC
JATE/TELEC
RCM
NBTC
IMDA
ICASA
RoHS
WHQL

二、Usage

Hardware connection

Module connection

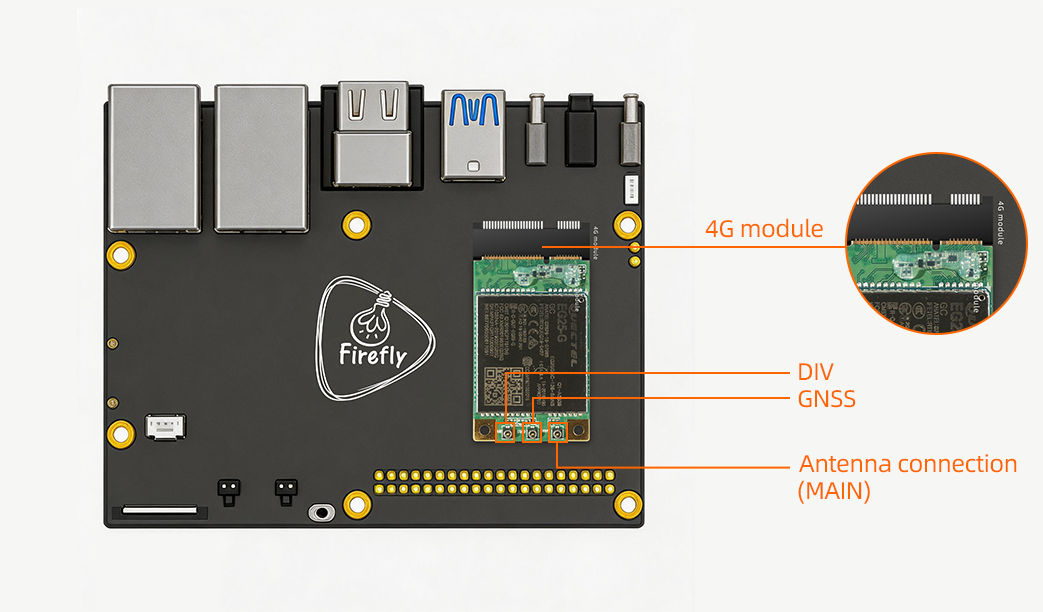

PCIE connection

CPU Board
RK3566 AIO-3566JD4
RK3568 AIO-3568J
RK3588 ITX-3588J, AIO-3588JSD4

USB connection

_images/EG25_usb.png

SIM insertion

_images/EG25_sim.png

三、Resource download

Related documents and firmware download, see the official website Resource Download

四、Tutorial

Compile the firmware

RK3566 platform

System Board
Android11.0 AIO-3566JD4, ROC-RK3566-PC

RK3568 platform

System Board
Android11.0 AIO-3568J, ROC-RK3568-PC

RK3588 platform

System Board
Android12.0 ITX-3588J,ROC-RK3588S-PC, AIO-3588SJD4,
