AIBOX-PRO-3588 features a dual-core module design with heterogeneous dual-core architecture. Two core modules work independently for multi-task parallel processing. The main controller Core-3588JD4 integrates an ARM Mali-G610 MP4 quad-core GPU with a built-in AI accelerator NPU, delivering 6 TOPS of computing power and supporting mainstream deep learning frameworks. The co-processor RK1828 supports deployment of large models such as Qwen3-8B and Qwen2.5-VL-7B, enabling multi-channel video recognition, object detection and tracking, and visual development. One box meets all personalized AI deployment needs.

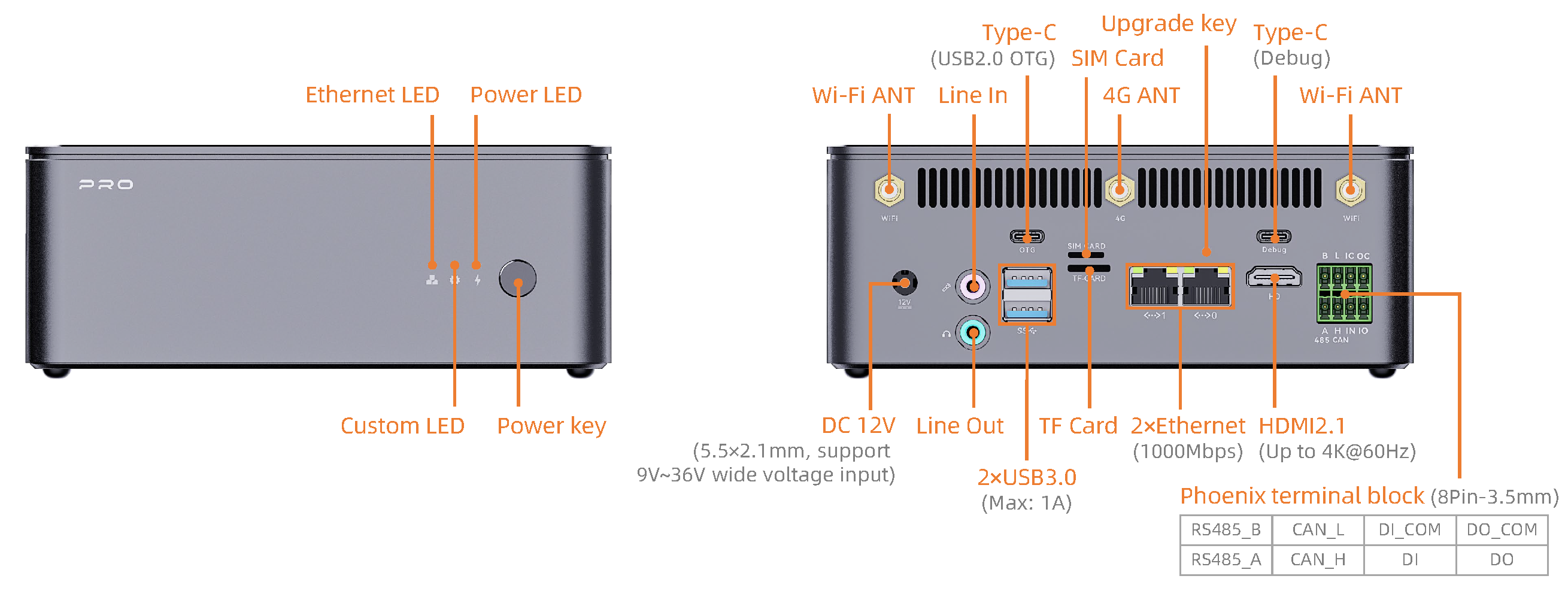

AIBOX-PRO-3588 has rich interfaces, mainly including:
12V Power Interface (5.5*2.1mm)
Power Button
MaskRom Button
Gigabit Ethernet x 2
USB 3.0 x 2
Line out & Line in
HDMI
TF Card Slot
SIM Card Slot
Type-C (OTG/Flash)
Type-C (Debug)
RS485
CAN
DI/DO Optocoupler Isolation
Power Indicator
Wi-Fi Antenna x 2
4G Antenna
5G Antenna x 4
